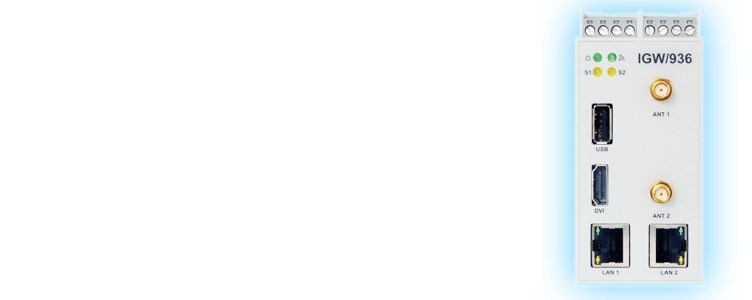

IGW/936-L: Application Gateway/LTE Router

Highspeed Wireless Application Gateway IGW/936-L with LTE Router

With the IGW/936-L, data from various sources can be received, read, processed and then forwarded wirelessly via LTE (Long Term Evolution) to various types of end devices.

Thanks to the high data rates of up to 100 MBit/s, applications with large amounts of data can be transmitted without problems.

The IGW/936-L can also send data prepared for visualization purposes directly to a display via the DVI/HDMI interface.

Here the integrated SSV/WebUI framework helps to adapt the data or the user interface to the respective end device (PC, smartphone, tablet etc.).

Since the framework exclusively uses standard web technologies such as HTTP(S), HTML, CSS, JavaScript and REST-based web services, there is no need to learn a proprietary programming language. Every professional web developer has the necessary know-how to customize the user interface with SSV/WebUI in the shortest possible time.

Software & Security

The IGW/936-L is equipped with the necessary software to develop and/or operate own web-based visualizations: Web server (lighttpd 1.4.26 with SSL support) and web browser (WebKitGTK+ with HTML5-, CSS3-, JavaScript support), (S)FTP-/TFTP server as well as an environment for Python, PHP and Java (JamVM 1.5.4, Classpath 0.98).

The SSV Field Data Engine (FDE), which is also included, takes care of collecting and distributing the data to be processed, whether via TCP, Modbus, OPC UA or other protocols.

The IGW/936-L with firewall, SSH, OpenVPN and OpenSSL (with SSL/TLS) guarantees a high level of data security.

For easy integration of the IGW/936-L, AutoIP and UPnP are also on board.

All software functions of the IGW/936-L can be easily configured with the SSV WebConfig tool.

Apps for the IGW/936

In order to extend the range of functions, we provide various apps for the IGW/936-L free of charge. For some of the apps offered by us, a license is required, which you can request through our sales department.

Firmware for the IGW/936

In the download section we also provide the latest firmware version for the IGW/936-L.

If you need an older version, please contact our sales department.

eSOM/3517 als Embedded Engine

The heart of the IGW/936-L is the eSOM/3517 with a Texas Instruments AM3517 32-bit ARM Cortex-A8 SoC running at 600 MHz. The AM3517 has an advanced graphics subsystem with OpenGL ES API and 3D support.

In combination with the internal LCD controller, very high-quality and high-performance user interfaces for medium and high-resolution LCDs with LVDS interface can be realized.

IGW/936-L Features

  • 32-bit ARM Cortex-A8 SoC @600 MHz
  • Linux OS with VPN and firewall
  • 1x LTE mobile radio modem
  • 1x 10/100 Mbps Ethernet
  • 1x 10/100/1000 Mbps Ethernet
  • 1x USB 2.0 host
  • 1x DVI/HDMI
  • 1x RS232/RS485
  • 1x RS485
  • 1x Real Time Clock
  • 12-24 VDC supply voltage
  • DIN rail mounting
  • IEC 61850 protocoll support (optional)
  • VHPready-compliant

Apps

To extend the range of functions of the IGW/936-L, we offer various apps.

App download

Accessories

I/O Extension IO/5640
