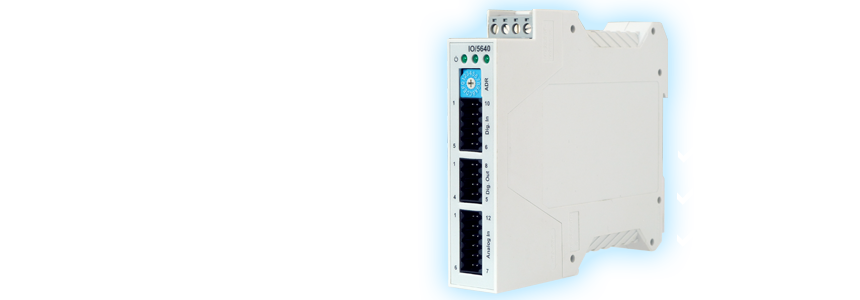

I/O Extension IO/5640

The IO/5640 brings analog data into the digital world!

To meet the requirements of future digital business processes, we have developed the IO/5640. It allows IGW/9xx gateways to be connected directly with process inputs and outputs.

Thus, control and data acquisition tasks can be realized with an IGW/9xx, e.g. in the field of telecontrol, condition monitoring or predictive maintenance.

An IO/5640 offers 8 analog inputs (each 4x 4-20 mA as well as 0-10 V), 6 digital outputs and 5 digital inputs for that.

IO/5640 and IGW/9xx are connected via RS485 and use the Modbus RTU protocol for communication, with the IO/5640 acting as a Modbus slave and the gateway as a Modbus master. A total of up to 15 IO/5640 can be operated as a cascade on a single IGW/9xx.

Of course, the IO/5640 can also be operated with an (industrial) PC, e.g. to make analog data available to an MES or ERP system.

Expandability per ACF

The range of functions of the IO/5640 can be expanded by so-called Application-specific Code Functions (ACF) and adapted to individual requirements.

The ACF are special software components that enable e.g. sensor data fusion, time-critical data pre-processing, high-speed timing measurements and much more directly in the IO/5640. The results are stored in optional Modbus registers.

That way, two binary sensors can, for example, be used to start and stop two independent 16-bit timers in order to measure the time span of the travel distance of a linear drive with a resolution of 1 millisecond.

Measurement of the time span of the travel distance of a linear actuator Zoom image

Figure 1: Measurement of the time span of the travel distance of a linear actuator

For example, to measure the time spans t1 and t2 of the distances x1 > x2 and x2 > x1 for the movements of an air-driven drive carriage with millisecond accuracy, the outputs of the binary proximity sensors (limit switches 1 and 2) are connected to two IO/5640 inputs. One limit switch starts the timer, the other one stops the time measurement. The values for t1 and t2 can be read via Modbus RTU.

Highlights

  • 4x Analog input 4-20 mA
  • 4x Analog input 0-10 V
  • 5x Digital input
  • 6x Digital output
  • 1x RS485 (for Modbus-RTU)
  • Operation as Modbus RTU slave
  • 5x Event counter
  • Expandability per ACF
  • 24 VDC supply voltage
  • <1 W power consumption
  • DIN rail mounting

Suitable for

RMG/941

IGW/936-L

IGW/935

IGW/925

IGW/922

  • (Industrial) PCs

Application Examples

Example Industry 4.0 Sensor System

The IO/5640 works as a signal acquisition unit for various analog sensor elements. The digitalized data is read out by an IGW/9xx gateway via Modbus RTU, converted into the application-related data formats (e.g. in CSV, JSON, XML) and supplemented by corresponding metadata if needed.

Sensor data fusions are also possible. Using various protocols, the CSV/JSON/XML data can then be forwarded to a cloud or other IT systems (e.g. MES, ERP, CRM, SQL database) or automation modules.

Example Industry 4.0 Sensor System Zoom image

Figure 2: Example Industry 4.0 Sensor System

Example PC-based DAQ System

A PC-based measurement data acquisition system ( = DAQ system) is used to acquire physical process parameters (e.g. current, voltage, temperature). The IO/5640 module is responsible for signal conditioning and A/D conversion

From the PC, the digitalized data is read out by the DAQ software via Modbus RTU (usually, a Modbus driver is included in the scope of delivery of good DAQ systems) and processed further. For location-independent visualization (e.g. smartphone app, SCADA), the PC forwards the data to a cloud if required.

Example PC-based DAQ System Zoom image

Figure 3: Example PC-based DAQ System

IO/5640-DS for Data Science Applications

The IO/5640-DS is a special variation of the IO/5640 (see Product variations and accessories). Instead of the Modbus RTU protocol via RS485, the IO/5640-DS offers a fast Data Stream Mode for analog data acquisition with 8 channels for Data Science applications.

The RS485 interface is operated point-to-point to send datagrams with measurement data either directly to an edge gateway (e.g. an IGW/9xx gateway) or to a PC system.

The 8 analog inputs are combined to a constant data stream and transmitted via RS485 as datagram. The number of channels, the sampling interval (up to 434 microseconds or 2.3 kHz) at 12-bit ADC resolution as well as the communication block size can be set individually.

The maximum possible sampling rate depends on the respective number of channels (see table on the right).

The data stream of an IO/5640-DS consists of individual datagrams, which are transmitted via RS485 to the edge gateway or the PC after each measurement. Each channel has a fixed place in the datagram for reasons of efficiency.

The channel in the datagram is only transmitted if it was selected during initialization (see fig. 5). Therefore, a datagram has a variable length that depends on the channel selection.

For each selected channel, 2 bytes are transmitted as Unsigned Int16 (16-bit integer) in Little Endian Mode. Each datagram is secured by a CRC8 as checksum. The conversion of the 16-bit integer measured values for voltage and current is done with the help of the following equations:

  • Voltage: U(x) = x * 0,0025 V
  • current: I(x) = x * (3125/620000) mA

The behavior of the IO/5640-DS is controlled by a state machine. Switching on the supply voltage results in a power-on reset, which sets the IO/5640-DS to the initial state IDLE. In this state it will wait for a configuration datagram to be sent from an edge gateway or PC to the IO/5640-DS via RS485 point-to-point connection.

A valid configuration datagram puts the IO/5640-DS from the IDLE to the MEASURING state (state transition start). The respective desired channels as well as the sampling frequency are transferred as parameters in a configuration datagram.

In the MEASURING state, the IO/5640-DS sends a measurement data datagram to the edge gateway or PC after each measurement. At a sampling frequency of e.g. 500 Hz, the IO/5640-DS sends a datagram with the current measured values via RS485 every 2 milliseconds.

RS485 Point-to-Point with data stream Zoom image

Figure 4: RS485 Point-to-Point with data stream

Number of channels Max. sample frequency Sample interval
1 2300 Hz 434 µsec
2 1645 Hz 607 µsec
3 1280 Hz 781 µsec
4 1047 Hz 955 µsec
5 886 Hz 1.12 msec
6 768 Hz 1.3 msec
7 677 Hz 1.47 msec
8 606 Hz 1.65 msec
Sampling rates depending on the number of channels

SScheme of the State Machine in the IO/5640-DS

Figure 5: Scheme of the State Machine in the IO/5640-DS

To change from the MEASURING state back into the initial IDLE state and thus stop the transmission of further measurement data datagrams, a stop datagram must be sent to the IO/5640-DS.

Python Library PyDSlog

As an accessory for the IO/5640-DS, PyDSlog, an open source Python library for recording arbitrary sensor readings in CSV files, is available. This library enables very fast raw sensor data acquisition via the analog inputs.

The CSV data can be used for exploratory or descriptive data analysis as well as for the training of machine learning algorithms for pattern recognition. Each individual measurement is saved as numeric value in a feature vector.

Such a vector (array of numeric values) represents the measured values of the entire IO/5640-DS input sensor system at a specific point in time.

In other words, the individual feature vector describes a time-specific state pattern of the respective sensor readings. The CSV file itself forms a data set of feature vectors that were recorded at different points in time.

In addition to the data from the eight analog channels, PyDSlog also allows the addition of other data such as a timestamp for Time Series CSV files and a machine learning label field to classify the state pattern of a feature vector.

The sensor measurement data collected via PyDSlog can be processed directly with other Python libraries.

Example of a CSV file with measured values Zoom image

Figure 6: Example of a CSV file with measured values

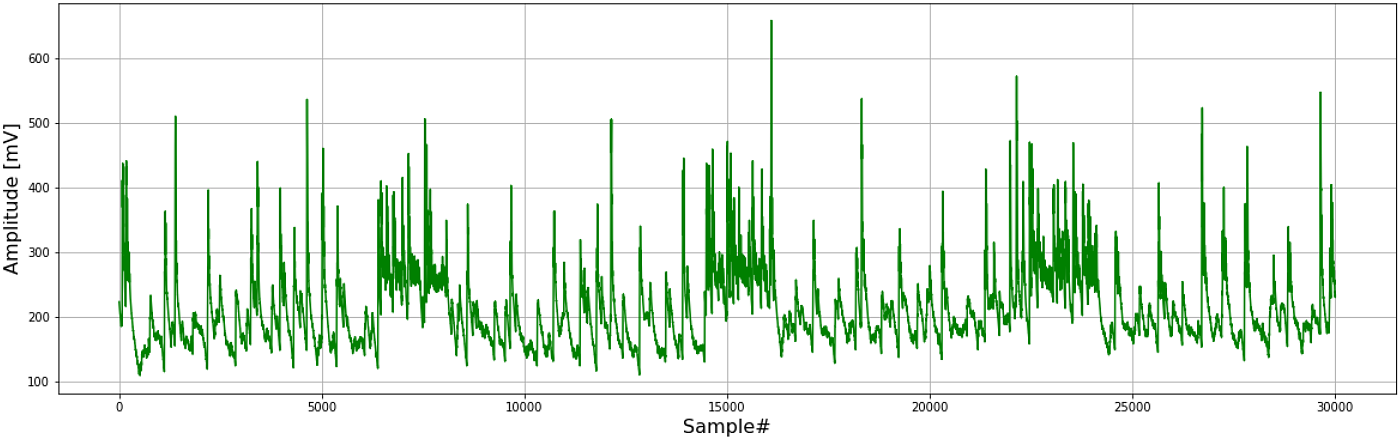

Visualization of measured data Zoom image

Figure 7: Visualization of measured data

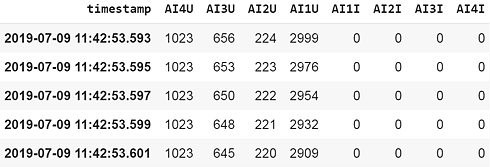

Thus, a PyDSlog CSV file can be read into a NumPy array or a Pandas DataFrame without any further conversion or editing steps and, for example, be visualized with the aid of Matplotlib, as shown in figure 7.

Connection Schemes, Properties and Data Formats

The cables used for wiring the IO/5640 must include the following specifications:

  • Cable cross-section between 0,08 und 1 mm2 (AWG28 bis AWG18), recommended: 0,2 bis 1 mm2 (with wire ferrule 0,34 mm2)
  • Stripping length 7 mm

The screwdriver used for the terminal strip must not be wider than 2.5 mm.

Properties Analog Input 0 - 10 V

Parameter Property / Value
Number of inputs 4
Input voltage max. ±17 V
Signal voltage 0 .. 10 V
Input resistance typ. 1 MΩ
Resolution 12 Bit
Conversion time typ. 10 ms
Measurement error at 25░ C < ±0,2% from full scale value
Temperature coefficient 0 .. 70░ C < ±0,0015%/K from full scale value

Modbus Data Format
Analog Input 0 - 10 V

This data format is only valid for the IO/5640 in Modbus operation.

Input voltage (V) Measurement Hex
< 0,0 0x7FFF
0,0 0x0000
2,5 0x2000
5,0 0x4000
7,5 0x6000
10,0 0x7FF8
> 10,0 0x7FF9

Data Stream Data Format
Analog Input 0 - 10 V

This data format is only valid for the IO/5640-DS in Data Stream operation.

For each selected channel 2 bytes are transmitted as Unsigned Int16 (16-bit integer) in Little Endian Mode with 12-bit ADC resolution.

Conversion of the 16-bit integer measurement values:

U(x) = x * 0,0025 V.

Connection Scheme Analog In

All signals refer to AIGND.

Connection scheme analog input Zoom image

Figure 8: Connection scheme analog input

Properties Analog Input 0 - 20 mA

Parameter Property / Value
Number of inputs 4
Input voltage ±10 V
Signal current typ. 0 .. 20 mA
Input resistance 242 Ω
Resolution 12 Bit
Resolution typ. 10 ms
Measurement error at 25░ C < ±0,2% vom Skalenendwert
Temperature coefficient 0 .. 70░ C < ±0,0025%/K from full scale value

Modbus Data Format
Analog Input 0 - 20 mA

This data format is only valid for the IO/5640 in Modbus operation.

Input current (mA) Measurement Hex
< 0,0 0x7FFF
0,0 0x0000
5,0 0x2000
10,0 0x4000
15,0 0x6000
20,0 0x7FF8
> 20,0 0x7FF9

Data Stream Data Format
Analog Input 0 - 20 mA

This data format is only valid for the IO/5640-DS in Data Stream operation.

For each selected channel 2 bytes are transmitted as Unsigned Int16 (16-bit integer) in Little Endian Mode with 12-bit ADC resolution.

Conversion of the 16-bit integer measurement values:

I(x) = x * (3125/620000) mA.

Properties Digital Input

Parameter Property / Value
Number of inputs 5
Input voltage max. ±50 V
H-Level 18 .. 30 V
L-level 0 .. 8 V
Input resistance typ. 10 kΩ
Input current @ 24 V typ. 2.3 mA
Input frequency max. 1 kHz

Connection Scheme Digital Input

The digital input of the IO/5640 can be wired as a high side switch (fig. 9) or as a low side switch (fig. 10).

Connection scheme high side switch (PNP) Zoom image

Figure 9: Connection scheme high side switch (PNP)

Connection scheme low side switch (NPN) Zoom image

Figure 10: Connection scheme low side switch (NPN)

Properties Digital Output

Parameter Property / Value
Number of outputs 6
Operating voltage (field side) 24 VDC ±10%
Current consumption (field side) 15 mA (module + load)
Load type ohmic, inductive, capacitive
Switching frequency max. 3 kHz
Output current max. 0,5 A
Short-circuit current typ. 1,1 A
ON resistance @ 0,5 A 150 .. 320 mΩ
Absorbable energy W max. 1 J; Lmax = 2 × Wmax / I2

Connection Scheme Digital Output

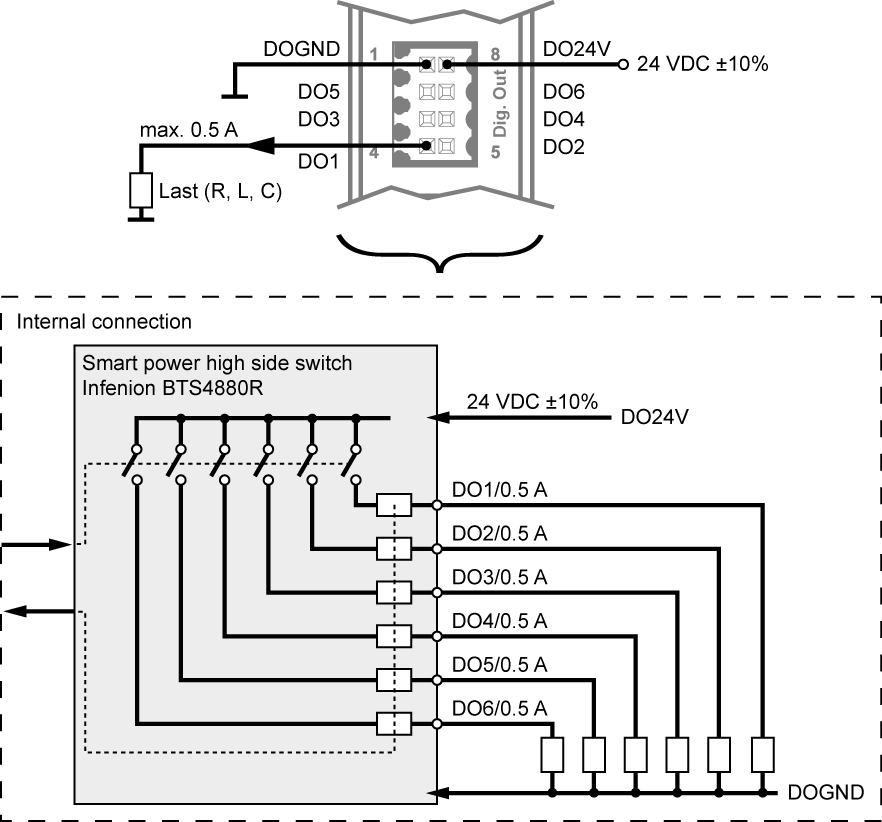

Connection scheme digital otput Zoom image

Figure 11: Connection scheme digital otput

Potential Separation

Potential separation Zoom image

Figure 12: Potential separation

Modbus Properties

The IO/5640 is connected to the gateway/PC as a Modbus RTU slave via RS485 (half duplex). The slave address is set via the rotary switch on the front panel.

Address 15 is with termination. Adress 16 (position 0) is for service purposes only.

Transmission Parameter

  • Baudrate: 19.200 Baud
  • Parity: "EVEN"
  • Stopbit: 1
  • Timeout: 2000 µs

Definitions

  • "S" = Modbus slave (IO/5640)
  • "M" = Modbus master
  • "FC" = Function Code

Modbus Function Codes

  • FC1: Read Coils (0x01)
  • FC2: Read Discrete Inputs (0x02)
  • FC3: Read Holding Registers (0x03)
  • FC5: Write Single Coil (0x05)
  • FC6: Write Single Registers (0x06)

Data Types and Coding

Data type Bits Value range Coding/byte order
UINT16 16 0 .. 216-1 [DB1][DB0] (big endian) - High-Byte first
SINT16 16 -32768 .. 32767 [DB1][DB0] (big endian) - High-Byte first
UINT8 8 0 .. 255

Modbus Register Set - Digital Inputs

IO Direction Function Register [dec] Data type
DI1+/- S > M
S > M
S > M
FC2
FC3
FC3
0
8 [BIT0]
9
UINT8
UINT16
UINT16
DI2+/- S > M
S > M
S > M
FC2
FC3
FC3
1
8 [BIT1]
10
UINT8
UINT16
UINT16
DI3+/- S > M
S > M
S > M
FC2
FC3
FC3
2
8 [BIT2]
11
UINT8
UINT16
UINT16
DI4+/- S > M
S > M
S > M
FC2
FC3
FC3
3
8 [BIT3]
12
UINT8
UINT16
UINT16
DI5+/- S > M
S > M
S > M
FC2
FC3
FC3
4
8 [BIT4]
13
UINT8
UINT16
UINT16

Modbus Register Set - Digital Outputs

IO Direction Function Register [dec] Data type
DO1 M > S
S > M
M > S
S > M
FC5
FC1
FC6
FC3
0
0
14 [BIT0]
14 [BIT0]
UINT8
UINT8
UINT16
UINT16
DO2 M > S
S > M
M > S
S > M
FC5
FC1
FC6
FC3
1
1
14 [BIT1]
14 [BIT1]
UINT8
UINT8
UINT16
UINT16
DO3 M > S
S > M
M > S
S > M
FC5
FC1
FC6
FC3
2
2
14 [BIT2]
14 [BIT2]
UINT8
UINT8
UINT16
UINT16
DO4 M > S
S > M
M > S
S > M
FC5
FC1
FC6
FC3
3
3
14 [BIT3]
14 [BIT3]
UINT8
UINT8
UINT16
UINT16
DO5 M > S
S > M
M > S
S > M
FC5
FC1
FC6
FC3
4
4
14 [BIT4]
14 [BIT4]
UINT8
UINT8
UINT16
UINT16
DO6 M > S
S > M
M > S
S > M
FC5
FC1
FC6
FC3
5
5
14 [BIT5]
14 [BIT5]
UINT8
UINT8
UINT16
UINT16
DO1 .. 6 S > M

FC3

15 [BIT0]
15 [BIT1]
UINT16


Register Set - Analog Inputs

IO Direction Function Register [dec] Data type
AI1U S > M FC3 16 SINT16
AI2U S > M FC3 17 SINT16
AI3U S > M FC3 18 SINT16
AI4U S > M FC3 19 SINT16
AI1I S > M FC3 20 SINT16
AI2I S > M FC3 21 SINT16
AI3I S > M FC3 22 SINT16
AI4I S > M FC3 23 SINT16

Register Set - Additional Functions

IO Direction Function Reg. [dec] Data type
LED_S1 M > S
S > M
FC6
FC3
25
25
UINT16
UINT16
LED_S2 M > S
S > M
FC6
FC3
26
26
UINT16
UINT16
DT1 S > M FC3 54 UINT16
DT2 S > M FC3 55 UINT16
SW_SVN S > M FC3 0 UINT16
SW_BUILD S > M FC3 1 UINT16
SW_VERSION S > M FC3 2 UINT16
DEVICE_NAME S > M
S > M
S > M
S > M
FC3
FC3
FC3
FC3
3
4
5
6
UINT16
UINT16
UINT16
UINT16
WATCHDOG M > S
S > M
FC6
FC3
7
7
UINT16
UINT16

Product Variations & Accessories

Name Description
IO/5640 6 digital outputs, 5 digital and 8 analog inputs, operation as Modbus RTU slave
IO/5640-DS 8 analog inputs for data acquisition in Data Stream Mode, PyDSlog library for data recording in CSV files
USB Adapter RS485 to USB adapter with 2 m cable length for connecting the IO/5640(-DS) to a PC
